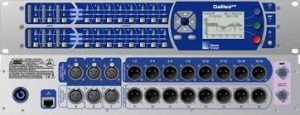

The Galileo 616 AES is a new version of the processor for the Galileo loudspeaker management system. The new processor provides 16 matrix outputs on eight AES/EBU (AES3) digital outputs. The top row of eight XLR audio outputs provides 16 channels of AES3 digital outputs (two channels per output; 1–2, 3–4, 5–6, 7–8, and so forth).
When connecting these outputs to the inputs of AES/EBU devices, use only cables rated for AES3 signals. The bottom row of eight XLR audio outputs (9–16) provides eight channels of analog outputs and functions the same as a standard Galileo 616. Any output processing applied to outputs 9–16 are mirrored in digital format on the appropriate AES3 output and on the corresponding analog output. No change has been made to the matrix, input processing, and output processing for the Galileo 616 AES. These function the same as a standard Galileo 616.
